PRECONFIGURED SYSTEMS

TV2 Preconfigured Systems

Reliable cleanroom monitoring systems designed for accurate environmental monitoring and easy installation.

TV2 Cleanroom Monitors

Advanced monitoring solutions for cleanroom environments

PRODUCT

TV2-204p

TV2 Quick

Check monitor with one differential pressure sensor.

  • Sockets for 4 wired sensors;
  • PC interface software;
  • Email alert software;
  • Normally open relay;
  • NIST-traceable calibration certificate;
  • 2 flush mount passive ports;
  • Power out alarm;
  • 72-hour battery backup;
  • Power supply with 6' USB cable;
  • Three additional sensors can be added
TV2-204p Cleanroom Monitor
TV2-204p Monitor
Starting From $1,898.00
Add to Cart
MODEL TV2-204pt
TV2 CLEANROOM MONITOR

TV2 Quick Check Monitor

TV2 Quick Check monitor with one differential pressure sensor and one temperature sensor.

What's Included
  • Sockets for 4 wired sensors
  • PC interface software
  • Email alert software
  • Normally-open relay
  • NIST-traceable calibration certificate
  • 2 flush mount passive ports
  • Power out alarm
  • 100-hour battery backup
  • Power supply with 6' USB cable
  • Two additional sensors can be added
TV2-204pt Monitor
TV2-204pt
PRODUCT PRICE
$2,077.00
Professional monitoring solution Add to Cart
Reliable & Professional
TV2-204ptr

TV2 Quick Check Monitor

TV2 Quick Check monitor with one differential pressure sensor and one temperature/humidity sensor.

Includes:

  • Sockets for 4 wired sensors
  • PC interface software
  • Email alert software
  • Normally open relay
  • Power out alarm
  • 100-hour battery backup
  • NIST-traceable calibration certificate
  • 2 flush mount passive ports
  • Power supply with 6' USB cable
  • Two additional sensors can be added
TV2 Quick Check Monitor
$1,898.00
Add to Cart
TV2-204ptr-2

TV2 Quick Check Monitor

TV2 Quick Check monitor with two differential pressure sensor and two temperature/humidity sensor.

Includes:

  • Sockets for 4 wired sensors
  • PC interface software
  • Email alert software
  • Normally open relay
  • Power out alarm
  • 72-hour battery backup
  • NIST-traceable calibration certificate
  • 4 flush mount passive ports
  • Power supply with 6' USB cable
  • Two additional sensors can be added
TV2 Quick Check Monitor
$2,689.00
Add to Cart
TV2 OPTIONS

Additional Accessories & Options

Customize your TV2 monitor with additional connectivity, mounting and protection options.

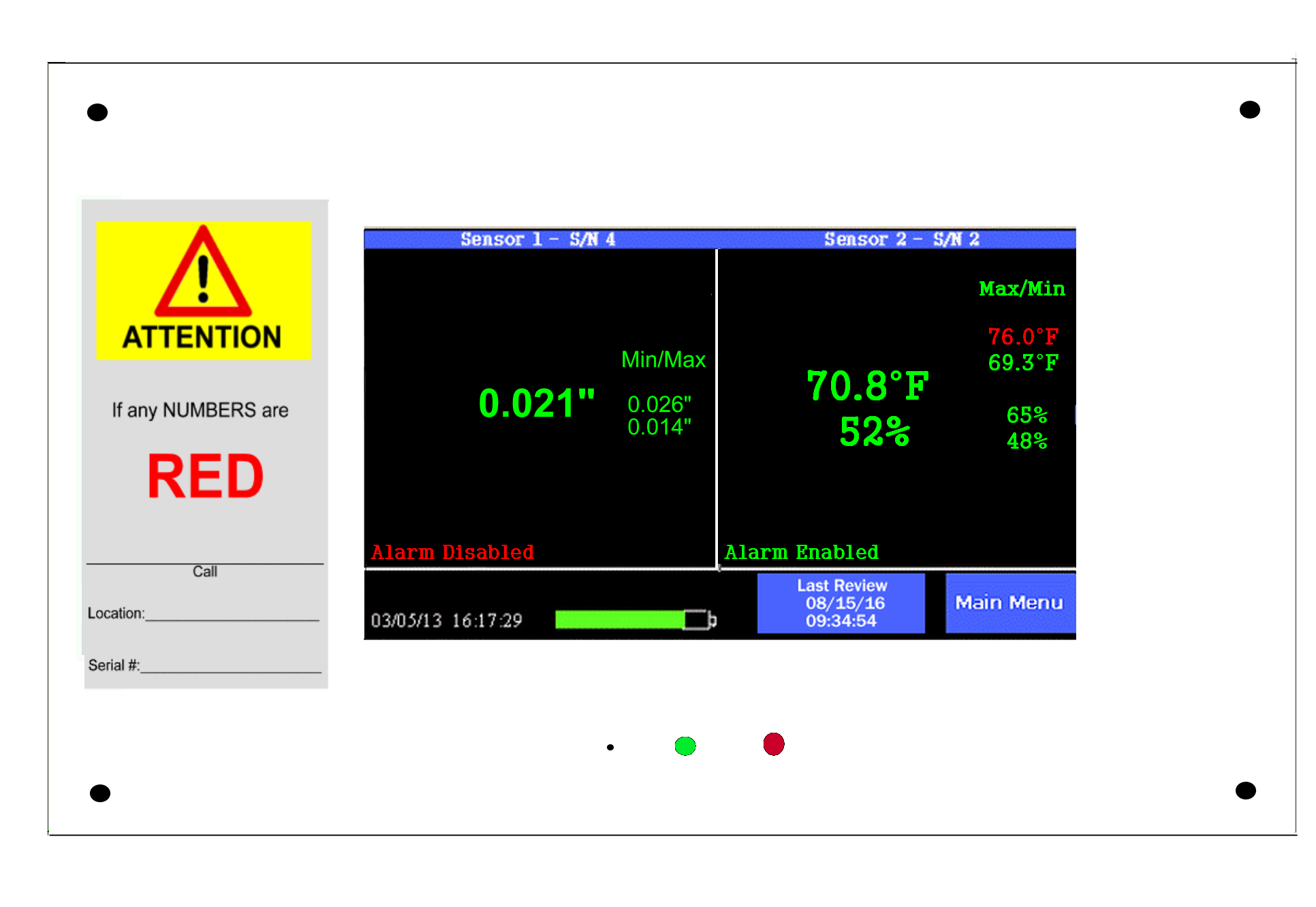

TV2-pm

Panel Mount

Panel Mount (flush mount) option for TV2 wired or wireless monitor.

TV2 Panel Mount
$Monitor Accessories9.00
Add to Cart
BACnet

BACnet Interface

Optional BACnet interface for Building Automation Systems.

$89.00
Add to Cart
POE

POE Option

Power over Ethernet option for the TV2 monitor.

$89.00
Add to Cart
WiFi

WiFi Connection

WiFi connection that replaces the Ethernet connection on the TV2 monitor.

$89.00
Add to Cart

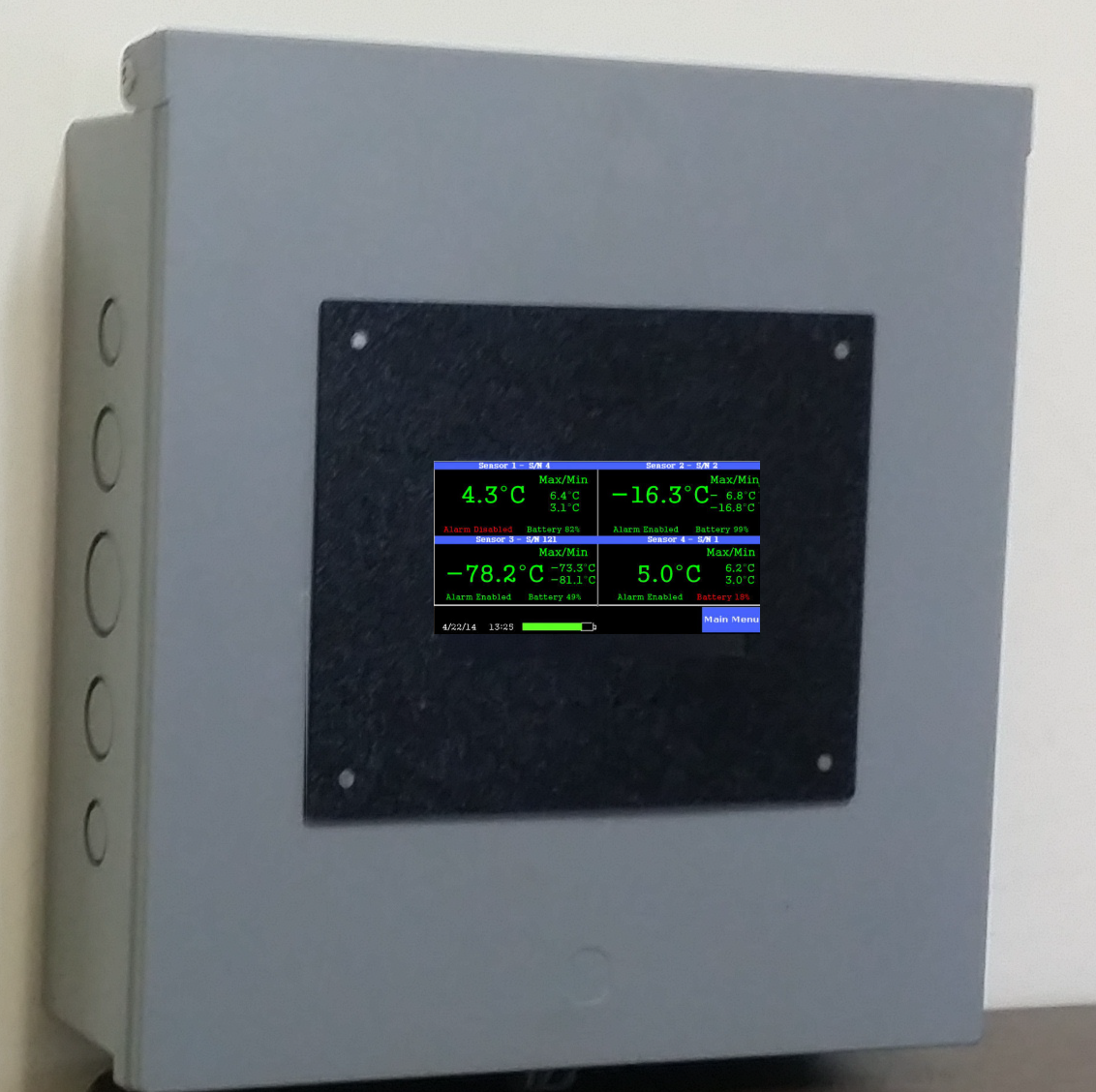

TV2ic

Heavy Duty Plastic Case

Heavy duty plastic case (1/8" thick), for mounting TV2 monitors. Measures 12" x 12" x 4" with knockout plugs for conduit & mounting on wall. Hinged cover for easy access. Conduit and collars not included.

TV2 Heavy Duty Plastic Case
$229.00
Add to Cart

Additional Wired Sensors

(Used with TV2-204 or TV2-2021DD1)
DDI

Digital Temperature Sensor

Digital temperature sensor -40° to ~125°C (±0.3°C) for refrigerators or freezers. 3/8" diameter sensor with 20 foot wire. Immersable.

DDI Digital Temperature Sensor
$89.00
Add to Cart
TSMRH

Temperature & Relative Humidity Sensor

Temperature & Relative Humidity sensor with 20 foot connecting wire.
Range 170°F to -22°F (±.5°F)
1% to 99% RH (±3%).

TSMRH Temperature and Humidity Sensor
$189.00
Add to Cart

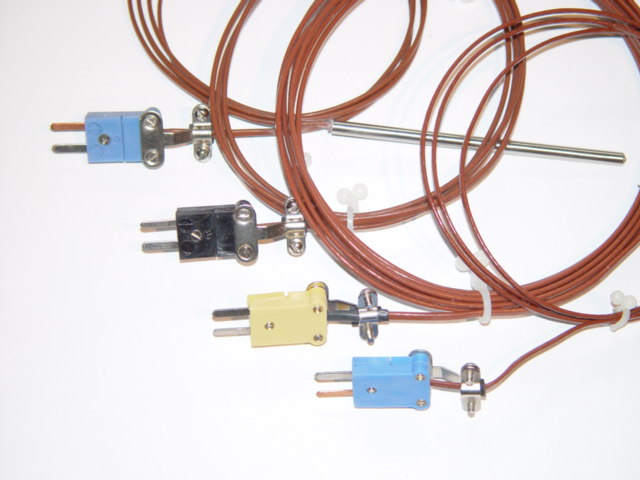

TSTC-T

Extreme Temperature Sensor

Extreme temperature sensors. Specify type according to temperatures being monitored. All thermocouples have 20-foot wire.

TSTC-T Extreme Temperature Sensor
$199.00
Add to Cart
WDP1

Differential Pressure Sensor

Differential Pressure Sensor ±0.500.0"wc. (±.002" wc). Comes with twenty-foot connecting wire, two clear plastic tubes, 12" long and two passive port wall plates.

WDP1 Differential Pressure Sensor
$270.00
Add to Cart
CC-25

Sensor Wire Extension

Fifty foot sensor wire extension for TV2 wired sensors. Four conductor M/F cable. Can be plugged together for longer runs. Also available as M/M to replace shorter sensor cables.

CC-25 Sensor Wire Extension
$13.50
Add to Cart
WIRELESS MONITORING

Additional Wireless Sensors

Used with TV2-201, TV2-201P, or TV2-201ip.

WS SERIES
WS4HETM Wireless Sensor

Temperature Sensor

Temperature sensor for refrigerators or freezers. 3/8" diameter sensor on 24" wire, which can be immersed in liquid. (-20 to 80°C, ±0.3°C)

−20°C 80°C ±0.3°C
WS4HETM Temperature Sensor
PRICE $179.00 Add to Cart
WS4HITMIHM Wireless Sensor

High Accuracy Temperature & Humidity Sensor

High accuracy internal thermistor and humidity sensor with transmitter. Range ~60 feet indoors. (±0.3°C, ±3.0% RH)
(-20°C to 85°C, 0% to 100%rh)

±0.3°C ±3.0% RH 60 FT
WS4HITMIHM Humidity Sensor
PRICE $189.00 Add to Cart
WS4HETC-T Wireless Sensor

T-Type Thermocouple

T type thermocouple for extreme temperatures (-200°C to 350°C). This sensor includes a transmitter and a T-type thermocouple on a 24" lead wire.

−200°C 350°C 24" Wire
WS4HETC-T Thermocouple
PRICE $199.00 Add to Cart
+
ACCESSORIES

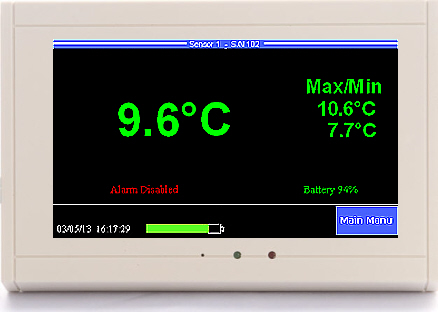

Accessories for ThermaViewer and TV2 products.

Compatible accessories are available for ThermaViewer and TV2 products.

ThermaViewer Accessories
View Accessories →
ORDERS

ThermaViewers displays do not have sensors with them. Sensors must be ordered separately; the displays are shipped with PC software, 1 - 10' PC interface cable, US switching 120VAC power supply, battery backup, and user guide.

TERMS

Visa, MasterCard, American Express, Wire Transfer, Prepaid, or Purchase order with approved credit.

SHIPPING

FOB Crestwood, KY via UPS unless requested otherwise and quoted.

WARRANTY

All products carry a one year limited warranty. A twelve month extended warranty may be purchased. All returned items without cause will incur a 20% restocking fee.
