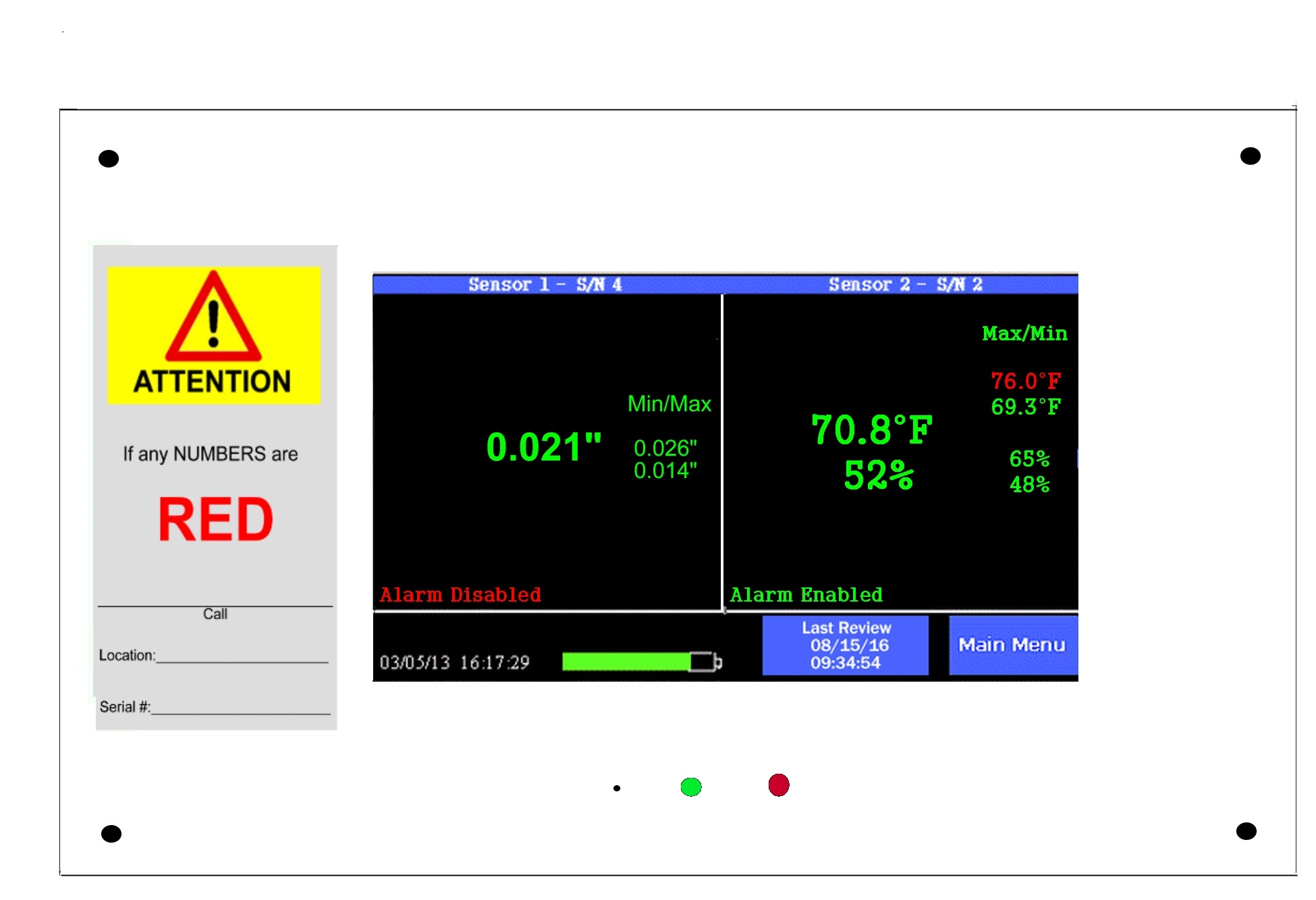

Panel Mount option for TV2 wired or wireless monitor. Flush mounts in wallboard walls with molly bolts (not included).

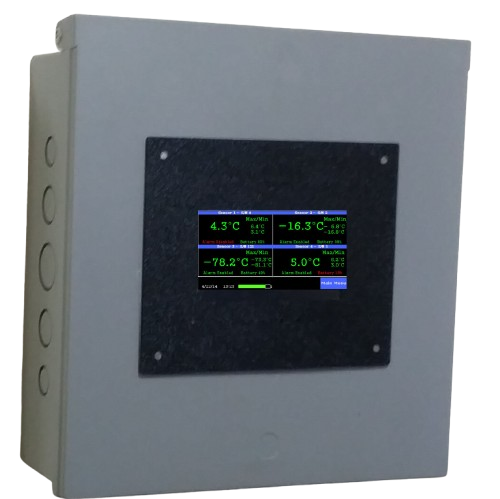

Heavy duty plastic case (1/8" thick), for mounting TV2 monitors. Measures 12" × 12" × 4" with knockout plugs for conduit & mounting on wall. Hinged cover for easy access. (Conduit and collars not included).
Power over Ethernet for TV2 monitor.
BACnet/IP via UDP interface.

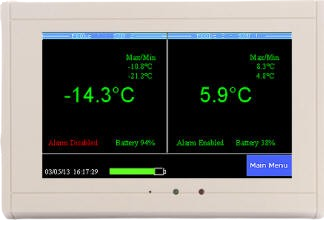

For the TV2 Fridge-Freezer alarm with wired sensors.
Range -40° to ~125°C (±0.3°C) for refrigerators or freezers. 3/8" diameter sensor with 20 foot wire. Can be immersed in liquid.
Sensor with 20 foot connecting wire. Range 170°F to -22°F (±0.5°F). 1% to 99% RH (±1.5%).

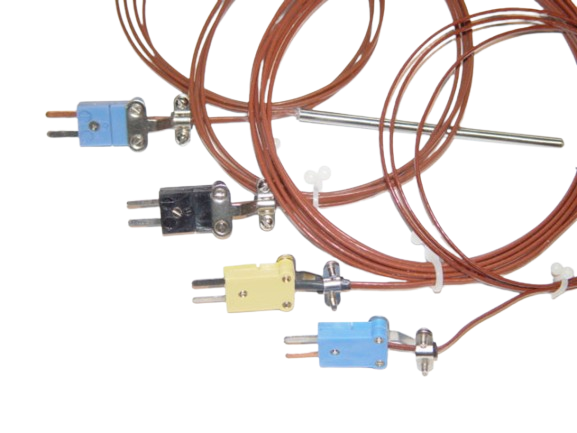

Wired T-type thermocouple for extreme temperatures (-200°C to 350°C) (±1.0°C) with 20 foot wire. Thermocouple 3" × 3/16".
Call to order other thermocouple types not shown in the dropdown menu over the “Buy Now” button.
Wired differential pressure sensor ±1.0"wc (±0.002" wc).
Twenty-five foot sensor wire extension for TV2 wired sensors.
For the TV2 Fridge-Freezer alarm with wireless sensors.
Wireless temperature sensor for refrigerators or freezers. 3/8" diameter sensor, which can be immersed in liquid.
(-0.3°C, 1.5% RH)
(-20°C to 85°C, 0% to 100%rh)
Measures 2" × 2" × 1"
Wireless T-type thermocouple for extreme temperatures (-200°C to 350°C). Thermocouple – 3/16" in diameter and 3" long.
Call to order other thermocouple types not shown on the dropdown menu over the “Buy-Now” button.
Auto Dialer for phone call alerts. Calls up to four phone numbers and leaves your recorded message.

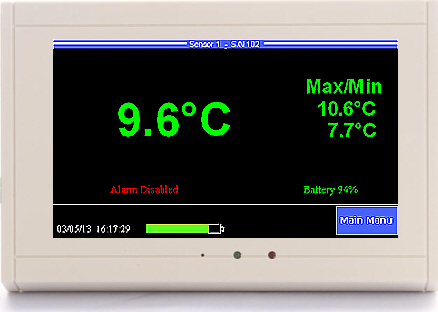

Accessories for ThermaViewer. Alarm, dialer, sensors, accuracy upgrades, calibration, extra long cables, etc.
Get a custom quote for your facility's monitoring requirements. Our technicians are ready to assist with sensor configuration, installation, and ongoing support.
