A complete digital monitoring solution designed for temperature and humidity recording with wireless sensors, real-time alerts and secure data storage.
Temperature & RH Monitoring
Continuous Data Logging
Live Chart Display
Email & Phone Notification
Reliable Operation
Easy Data Transfer

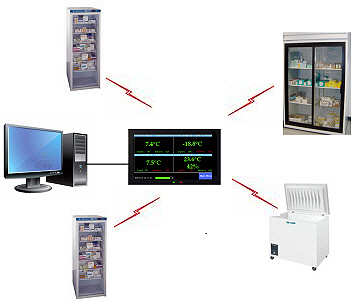

This paperless TV2 uses temperature only or wireless temperature/RH sensors to sample, log and chart temperature and humidity on the Easy-Touch™LCD. Sensors for any temperature range are available.

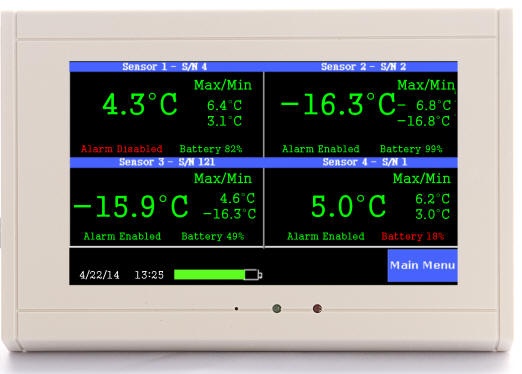

The status screen shows all four sensor readings
The paperless all electronic chart recorder is a very sophisticated instrument but the user interface is very simple and done with Easy-Touch™. It installs in minutes and requires no special training.
There are no moving parts on this chart recorder to wear out or replace. No charts or pens to change - ever.You save on the cost of the materials and on the labor to change them. And, of course, since there are no paper charts, you save on the file cabinet space to store them. All records are digital so they are stored in the instrument itself or on your computers. Once the temperature history is copied to a computer it is stored electronically as a file on the hard disk. And, of course, you can print out a chart at any time.
A continuous chart is always visible on the large display of the chart recorder. 1.5 years of temperature history is saved and displayed for each sensor if temperature is sampled every ten minutes. A zoom feature lets you literally look at 1.5 years of recorded data on one screen.

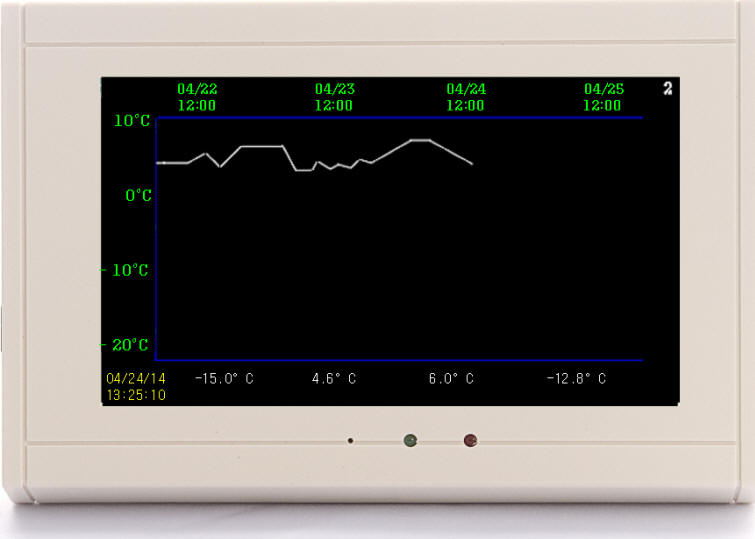

The chart is displayed right on the TV2 Chart Recorder
This Easy-Touch™ TV2 chart recorder highlights your recorded data on the display screen.
The status display provides a quick look at each of your sensors.
Touch any temperature to see the chart for that sensor. One glance is all that is needed to see what happened over the last day or two. Any alarms or unusual readings will stick out and be immediately apparent.
Use the zoom-out function to see a big picture of your recorded data. Trends show up clearly as you zoom out and see more and more data.
The trace mode lets you step through the chart to see every individual temperature reading. The time and day the reading was taken is shown along with the actual reading.
The chart recorder's on-board relay closes if the user-set temperature limits are exceeded, which triggers the internal alarm and flashing screen. If you are using an optional external alarm it will begin to wail. And if you are using the optional auto dialer you and several other people receive a phone call immediately.

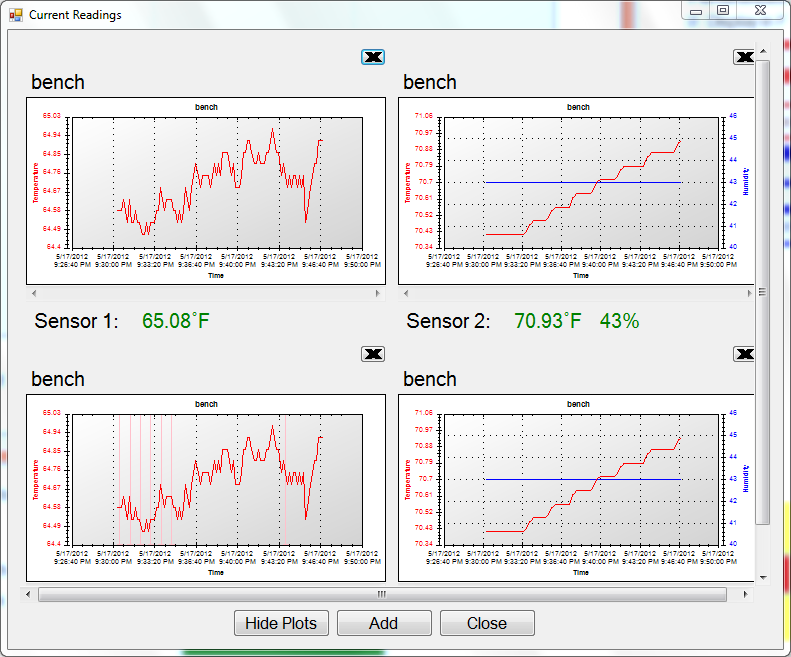

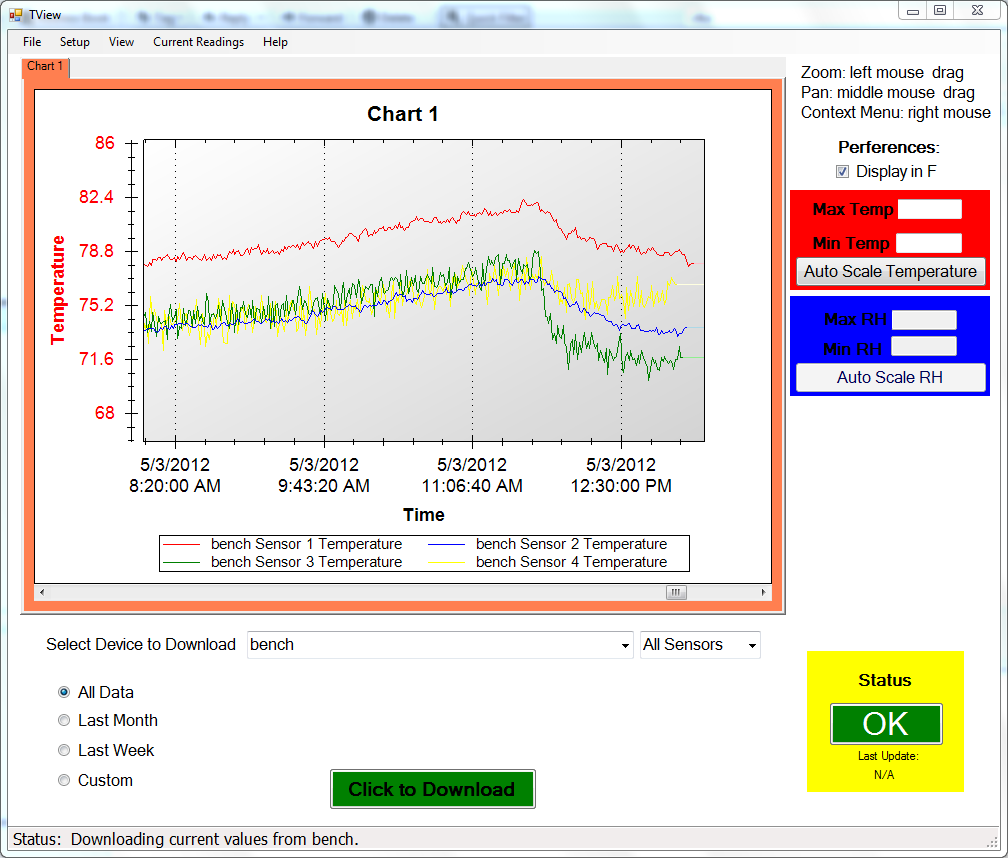

The paperless chart recorder holds over 80,000 data points for each sensor. All of that data can be downloaded to a computer, and displayed as a chart or in Excel as tabular data. The download program can be set to auto so that the latest data is copied to your computer where it can be accessed by anyone on your network.
Get a custom quote for your facility's monitoring requirements. Our technicians are ready to assist with sensor configuration, installation, and ongoing support.
